Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine

  • 1
  • 2
  • 3

Brand Name : Punching Hole Tools

Model Number : Punching Hole Tools 001

Certification : TS16949

Place of Origin : china

MOQ : 10 PCS

Price : Negotiate Price

Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 10-15 work days

Packaging Details : Plastic box and carton box packaging

Product Name : Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets

Material : SKD11,DC53 or HSS SKH51

Process Tube Dia. : Φ9.52-Φ110

Processing : Precision CNC Lathe Turning

Heat Treatment : HRC 60°-62°

Punching Hole Dia. : Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22

Quality : 100% Inspection

Surface Finish : Ra 0.4

Service : OEM or ODM

Application : CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC flute type punching machine,CNC Tube Integrated Machine(All in one),Integrated tube cutting bending and Punching machine,Integrated Punching Tube Bending and End Forming Machine

Usage : Punching Hole Copper Aluminum and Stainless Steel Tube

Contact Now

Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine
Product Specifications
Attribute Value
Product Name Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullet, Punch Hole Head, Punch Hole Bullets
Material SKD11, DC53 or HSS SKH51
Process Tube Diameter Φ9.52-Φ110
Processing Precision CNC Lathe Turning
Heat Treatment HRC 60°-62°
Punching Hole Diameter Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22
Quality 100% Inspection
Surface Finish Ra 0.4
Service OEM or ODM
Application CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine (All in one), Integrated tube cutting bending and Punching machine, Integrated Punching Tube Bending and End Forming Machine
Usage Punching Hole Copper Aluminum and Stainless Steel Tube
Product Description

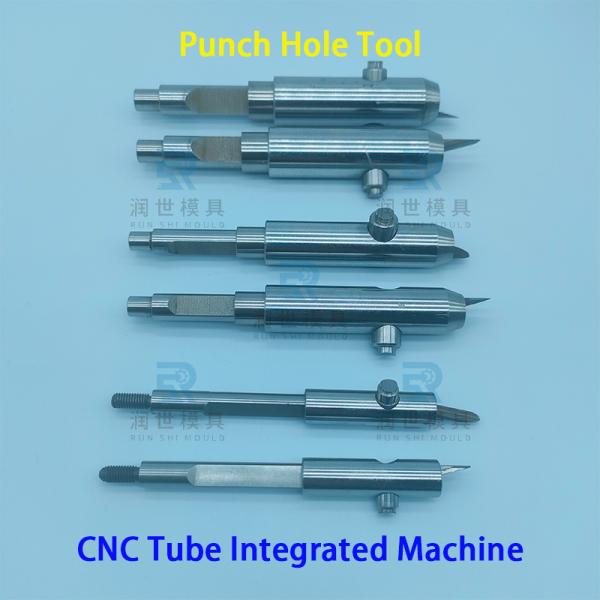

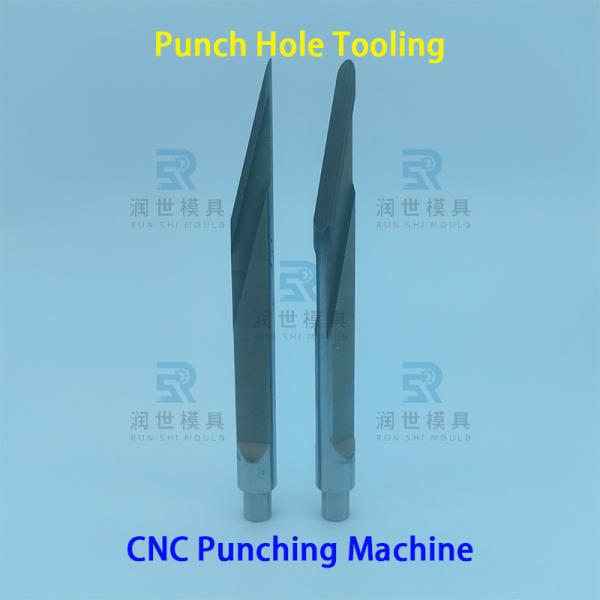

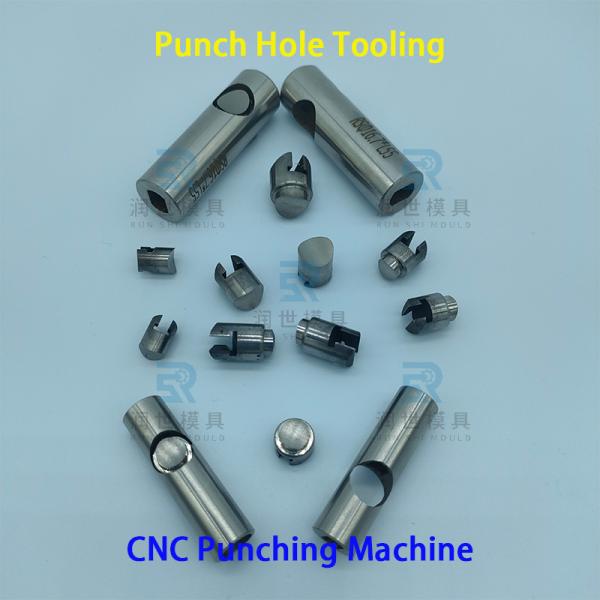

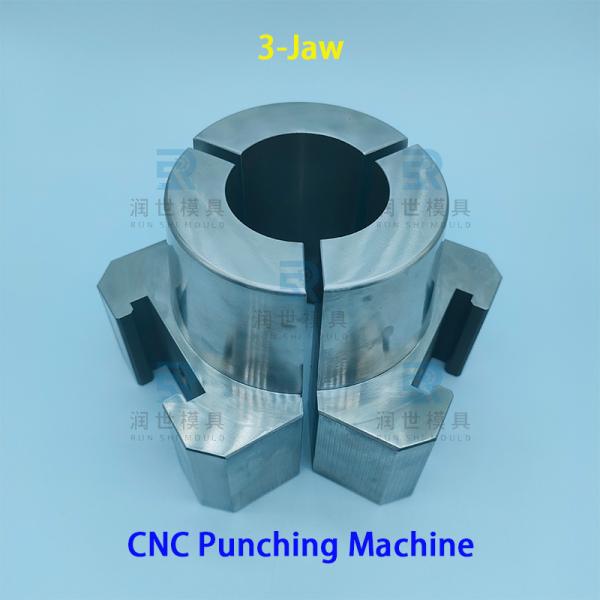

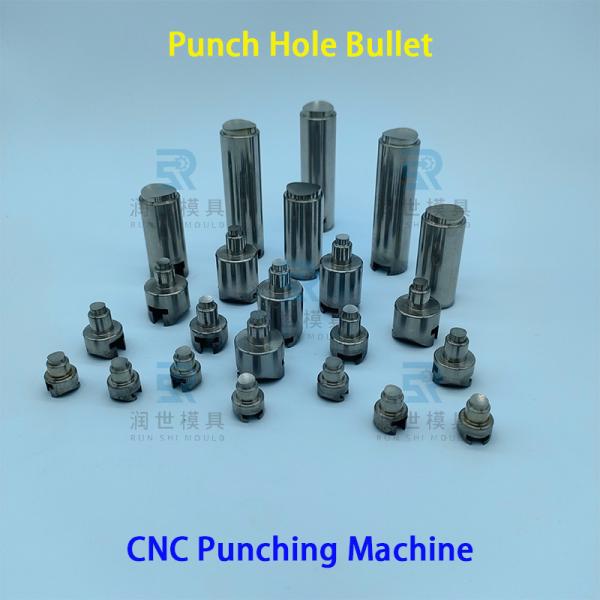

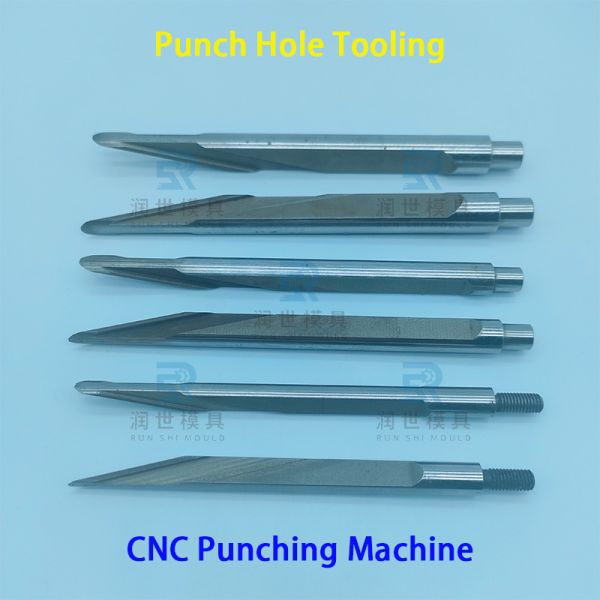

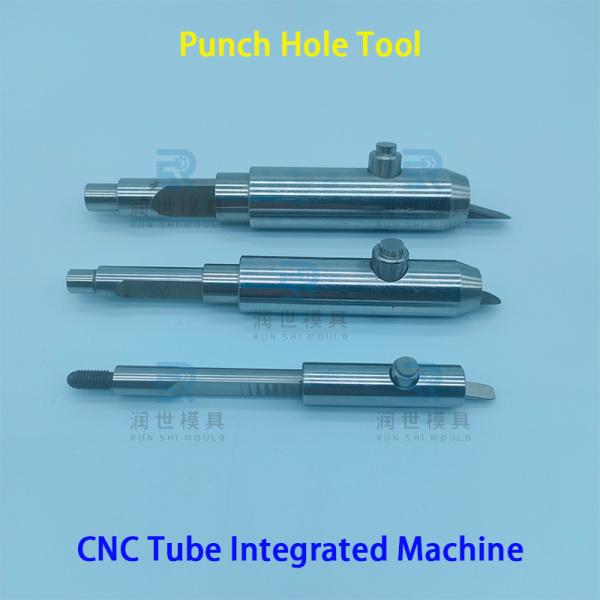

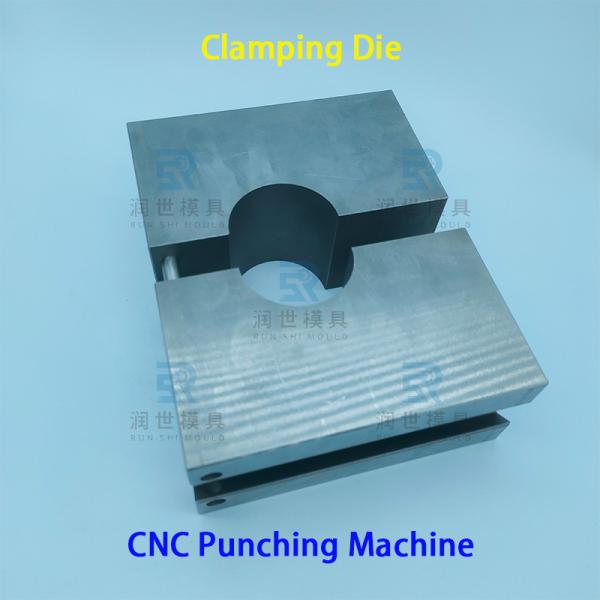

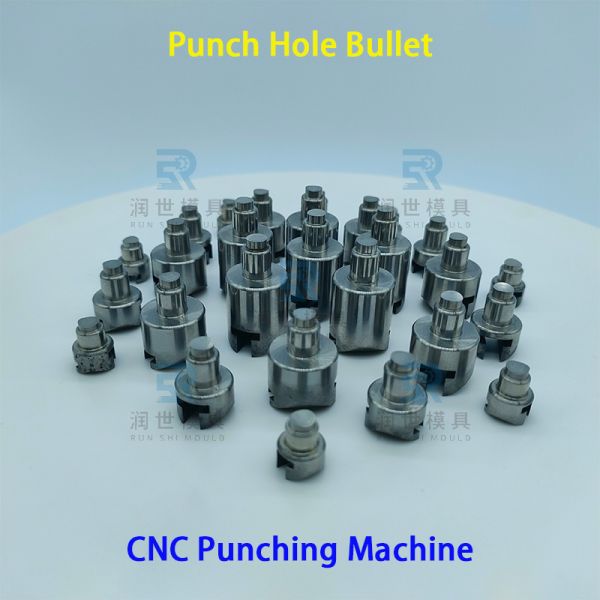

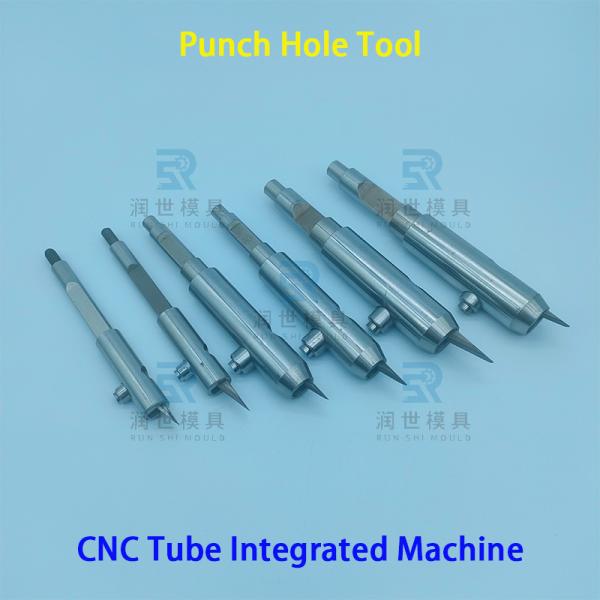

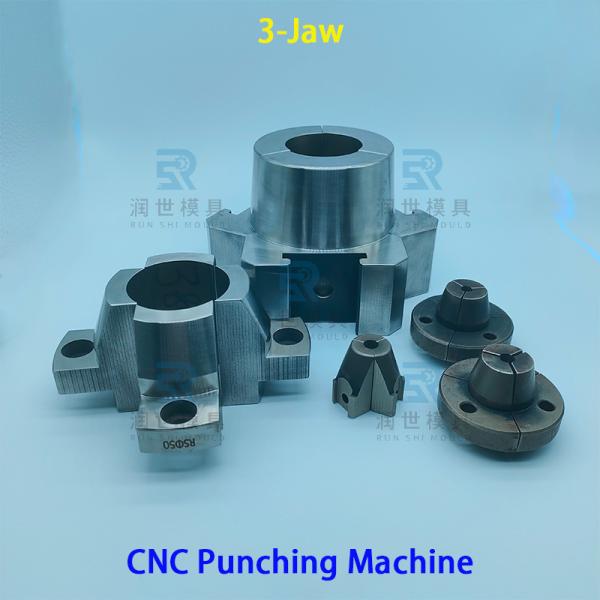

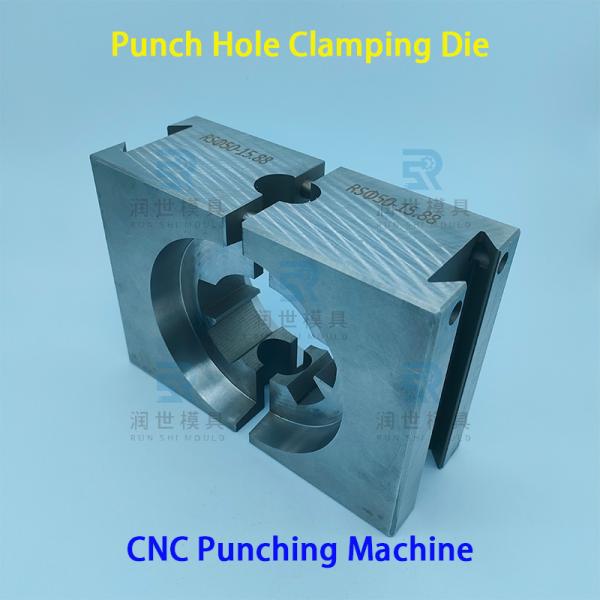

Our Punching Hole Tools include a punch head, punch sleeve, punch pusher, 3-jaw or chuck, clamp die, push rod, and hollow tube components. These essential tools are designed for the production of air-conditioning tube parts in the refrigeration heat exchanger industry.
Manufactured from high-speed steel SKH51, these tools offer exceptional hardness, wear resistance, and long service life. They are ideal for mass production of flute-shaped tubes for air conditioning, special-shaped punching, bending, expanding, and shrinking tube parts.
Compatible with fully automatic tube cutting, bending, punching, and end forming machines (All In One) from manufacturers like OMS and JDM. Custom specifications available to meet specific customer requirements.
Standard Specifications
Process Tube Diameter Available Punching Hole Diameters
Φ9.53mm (3/8inch) Φ5mm
Φ12.7mm (1/2inch) Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8inch) Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ28.58mm (1-1/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ31.75mm (1-1/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ34.94mm (1-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ41.28mm (1-5/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ53.98mm (2-1/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ60.32mm (2-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Other Specifications Custom sizes available
Product Images
Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine

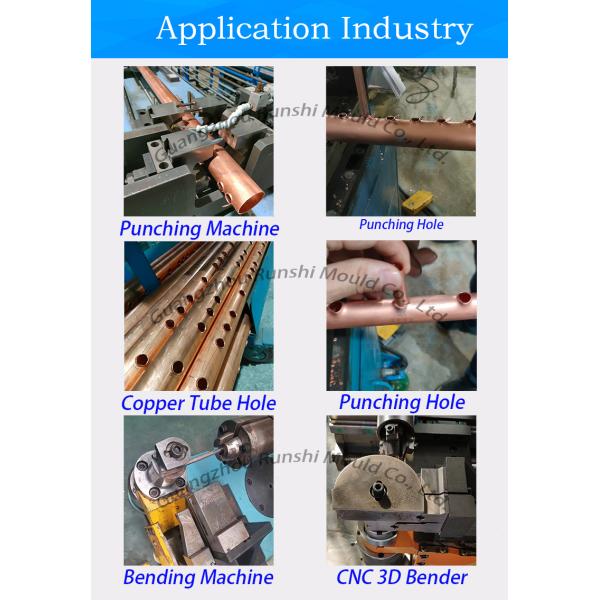

Application Industry
Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine
Manufacturing Workshop
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing. Our expertise extends to ceramic and tungsten steel parts for industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive applications.
Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine
Frequently Asked Questions
Q: What is the name of this product?
A: Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullets, Punch Hole Head, Punch Hole Bullets
Q: Are you a trading company or manufacturer?
A: We are the manufacturer.
Q: What industry is the Punching Hole Tools mainly used for?
A: These are essential tools for integrated tube cutting, bending and punching machines in the air-conditioning refrigeration heat exchanger industry.
Q: How do you manufacture after the order is confirmed?
A: We require samples or drawings (either is sufficient). Our production engineers have over 10 years of experience in controlling tolerances and precision.
Q: What is your delivery time?
A: Standard delivery is 10-15 working days for in-stock items, or 20-25 working days for custom orders (depending on quantity).
Q: What are your payment terms?
A: For orders ≤ $10,000 USD: 100% in advance. For orders > $10,000 USD: 50% T/T in advance, balance before shipment.
For additional questions, please feel free to contact our team.
